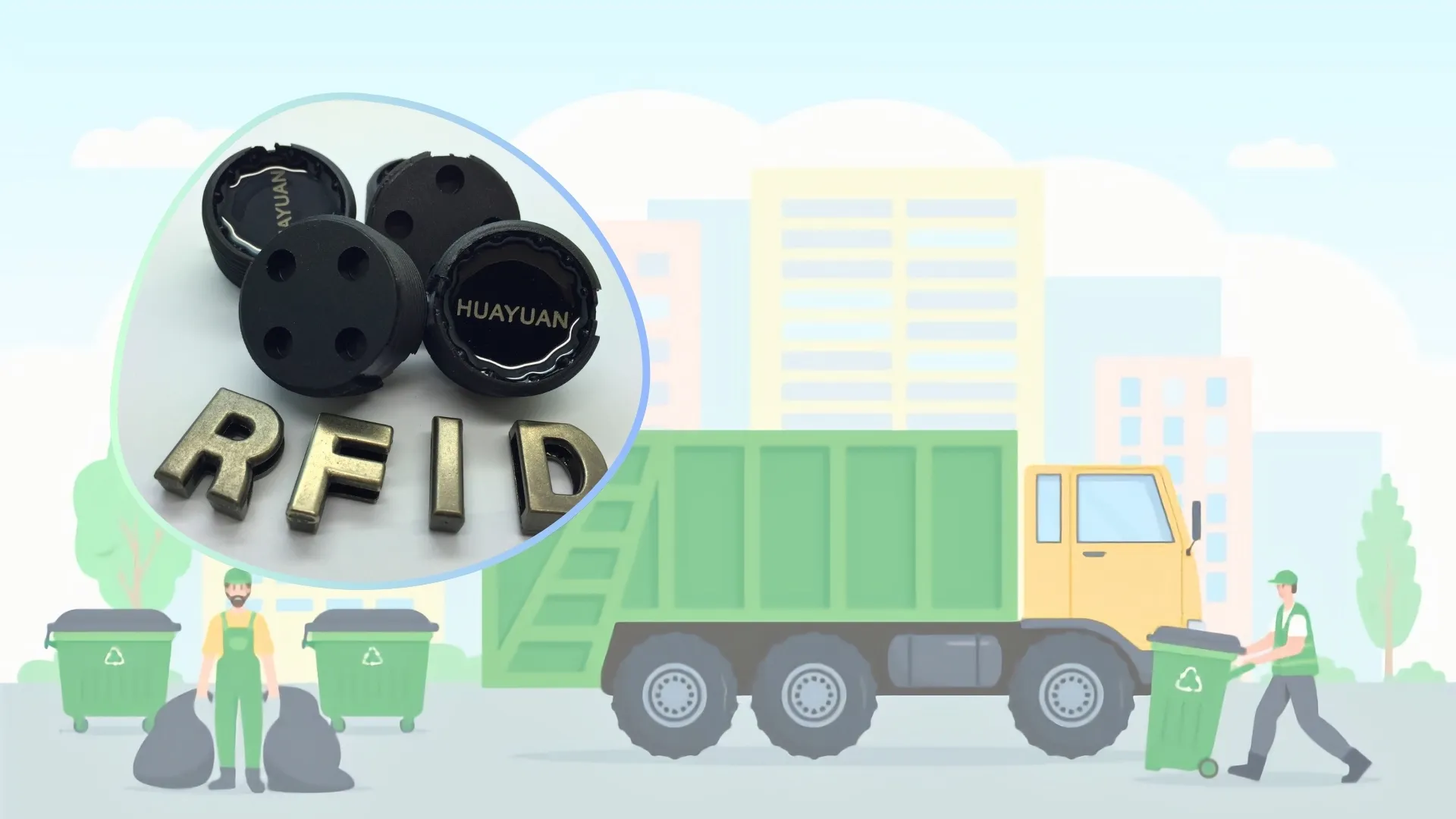

Bin Tag is specially designed for automatic garbage collection. The RFID waste bin tag can be installed inside or outside a trash can. It can be read by an RFID reader which is utilized by the drivers in collection trucks. It aims to improve efficiency, especially if it programmed a unique number associates a garbage cart with an address. The RFID waste bin tag is also a possibility for loyalty and reward programs offered to residents.

HUAYUAN’s RFID Waste Bin Tags are available in 125KHz/134.2KHz, 13.56MHz and UHF 860-960MHz.

RFID Worm Tag offers superior resistance to water, salt mist, mineral oil and petroleum, as well as high tolerance to shock and temperature variations. Each tag installs easily into standard nests, manufactured into most waste bins, including metal bins and DIN 30745 plastic bins.

Features of RFID Waste Bin Worm Tag

  • Material: Nylon + Epoxy Filling
  • Dimension: ∅30 x 15(H) mm
  • Frequency: LF, HF, UHF
  • Multi color for optional
  • Easily to be screwed
  • Robust housing, durable

Specifications of RFID Waste Bin Tag

  • Material: Nylon+ epoxy filling
  • Size: Φ30mm x 15mm, hole diameter: 5.5mm
  • IP Class: IP67
  • Color: Black, yellow, red, blue, grey etc
  • Read Distance: 5 ~ 10cm(LF); 5cm(HF); 2m ~ 3m(UHF)
  • Operating Temperature: -40°C ~ +120°C

RFID Waste Bin Tag Standards

  • Unique: DIN 30745
  • FDX-b BDE: EN 14803, DIN 30745
  • HDX: EN 14803, DIN 30745
  • HF: ISO 15693, ISO 18000-3, DIN 30745
  • UHF: UHF EPC Class1 Gen2, ISO 18000-6C, DIN 30745

RFID Waste Bin Tag Testing Video

Get in touch

For further information about Huayuan’s RFID waste bin tags and PVC RFID bin cards.

Please contact our sales team: contact@huayuansh.com
