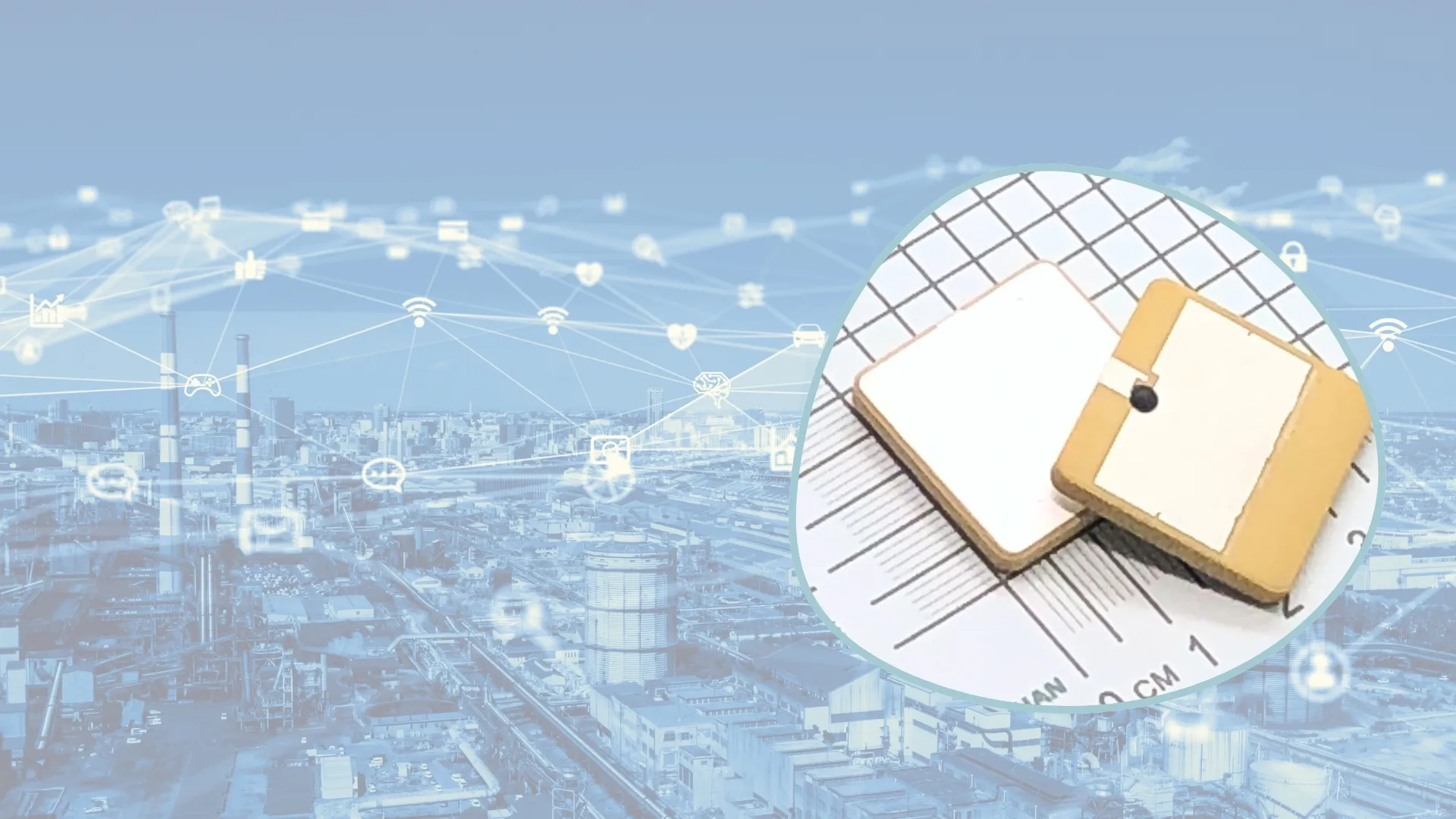

UHF ceramic tags are specifically designed for asset tracking in complex environments such as metals. The ceramic RFID anti metal tag has the characteristics of anti-disassembly, fragility, super anti-interference, high temperature resistance, corrosion resistance, waterproof and dustproof, high sensitivity, stable mini RFID tag quality, etc. Ceramic RFID tag can be embedded in various metal assets, providing a wide range of intelligent asset management solutions for medical devices, industrial manufacturing, aerospace and energy development.

Key Features of Ceramic UHF RFID Tag

  • Anti-demolition, fragile, super anti-interference, resist high temperature to 160℃.
  • The best solution for the small mini RFID tag with long reading distance.
  • Support multiple installation methods such as embedded installation and adhesive.
  • Customized frequency with the best performance to support the project.

Application of UHF RFID Ceramic Tag

Parts tracking management, tool management, large equipment and asset management, medical devices, IT asset management, embedded derivation product.

HUAYUAN can provide a variety of ceramic mini RFID tag with small size and long reading distance. At the same time, it can also customize the best performance according to the embedded object.

Here, you can find five existing ceramic anti-metal RFID tag model following:

ItemMinTag-1005UltraTag-1313AllTag-2525MinTag-1005MinTag-0505
ColorBlack or customWhite or custom
Dimension10*5*3mm13*13*3mm25*25*2.7mm10*5*3mm5*5*3mm
Attached toOn metalOn/ Embedded MetalOn MetalOn MetalOn/ Off Metal
Frequency920~925MHz
Custom
865-867MHz
Custom
920~925MHz
Custom
920~925MHz
Custom
920~925MHz
Custom
Read distanceHandheld reader:
≥ 0.6m at 28dBm.
Fixed reader:
≥1.2m at 30dBm
Handheld reader:
≥1.8m at 28dBm.
Fixed reader:
≥3m at 30dBm
Handheld reader:
≥3m at 28dBm.
Fixed reader:
≥4.5m at 30dBm
Handheld reader:
≥ 0.6m at 28dBm.
Fixed reader:
≥1.2m at 30dBm
Handheld reader:
≥0.3m at 28dBm.
Fixed reader:
≥0.6m at 30dBm
ApplicationGun, tool, IT asset management;
Medical instruments
Gun, tool, IT asset management;
Medical instruments
Parts tracking;
Dangerous goods management;
Large equipment and asset management;
Gun, tool, IT asset management;
Medical instruments
Gun, tool, IT asset management;
Medical instruments
ProtocolUHF EPC Global Class1 Gen2, ISO 18000-6C
MemoryEPC 96bits, Expanded memory 512bits
InstallationEmbedded, self-adhesive
Operating-30~85℃ / -22~185℉
Storage-40~160℃ / -40~320℉
Read/write100,000 cycle
IPIP65~IP68
Get in touch

Except for the ceramic metal RFID tag listed above, HUAYUAN has more than several dozens of existing RFID anti-metal tags for your selection. Additionally, the tag frequency with the best performance can be customized to support the project.

Getting more details, please contact our sales team: contact@huayuansh.com
