Compared with RFID/NFC label sticker, PVC RFID Coin Disc Tag is a durable and cost effective solution for outdoor applications. HUAYUAN PVC RFID coin disc tag provides excellent printing protection with glossy thin overlay and laser engrave permanent numbering. Every PVC RFID disc tag has very good RFID performance. Special glue could be added depend on your project requirement.

HUAYUAN has been R&D various RFID PVC tags for more than a decade that we are capable of developing custom RFID tags.

PVC RFID Tag Key Features

  • Strong lamination housing
  • Easily integrated to your workpiece/ product for a variety of industrial and Item Identification logistical
  • Different dimensions allow for optimum ratio of size / reading performance
  • Optional with Ferrite Layer to mount on metal
  • RoHS green product

Specification

  • Material: PVC, PET lamination

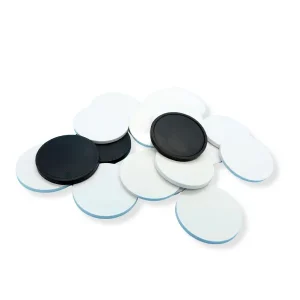

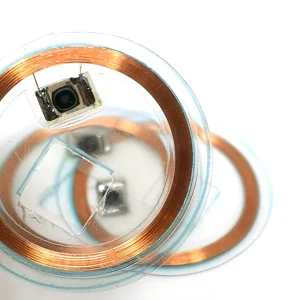

  • Color: White, Transparent

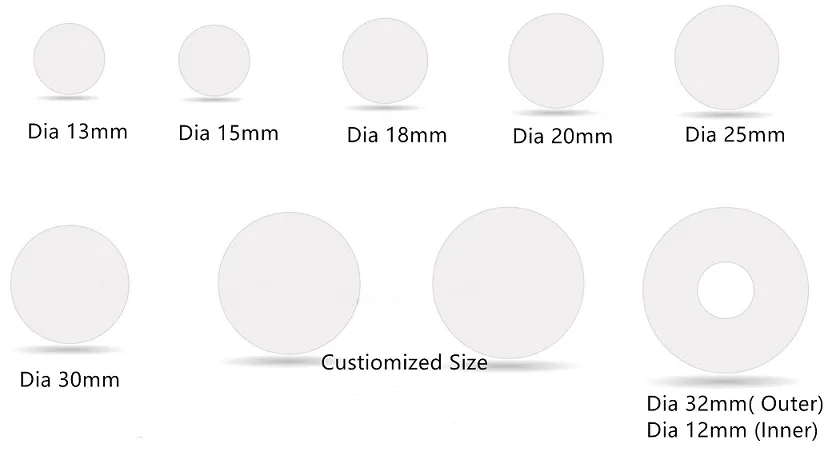

  • LF Size: 15 / 18 / 20 / 25 / 30 / 32 / 35 / 40 / 50 mm;
  • HF Size: 13 / 15 / 18 / 20 / 25 / 30 / 32 / 35 / 40 / 50 mm;
  • UHF Size: 20 / 25 / 30 / 32 / 35 / 40 / 50 mm
  • Thickness: 1.0~1.2mm or customized
  • Resistance: Indoor environment, with wafer & dust proof
  • Operating Temperature: -25 ~ 60℃
  • Storage Temperature: -40 ~ 70℃

Optional Craft

  • Coding: Chip Encoding

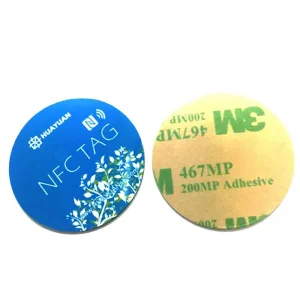

  • Custom logo: Silk-screen printing, Laser engrave
  • ID Number Printing: DOD printing, Laser engrave
  • On Metal: Anti-Metal Ferrite Layer optional, Thickness from 0.3-0.5mm

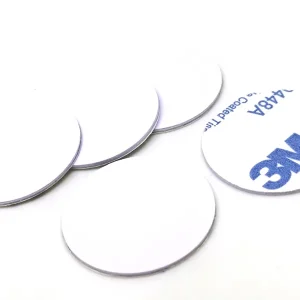

  • Adhesive: Ordinary Adhesive sticker, 3M Adhesive Layer Optional

Applications

  • Security Process Control
  • Asset Tracking
  • Device Embedded
  • Identification
  • Inventory Management
Get in touch

For further information about Huayuan’s RFID PVC coin disc tag, Please contact our sales team: contact@huayuansh.com
