Epoxy RFID Mini Tag
In automated production, the role of RFID mini tag is becoming more and more important and demand is increasing. In industrial applications, RFID increasingly requires embeddable products with small size and stable performance. High-frequency passive smart tag conforming to ISO15693 is a common industrial-grade management solution for price comparison, and it is more adaptable to liquid scenarios than UHF tags. HUAYUAN provides a large selection of small form factor mini RFID Tags. These RFID mini tag designed to be used in many applications where fitting into small areas is required to track and monitor assets.

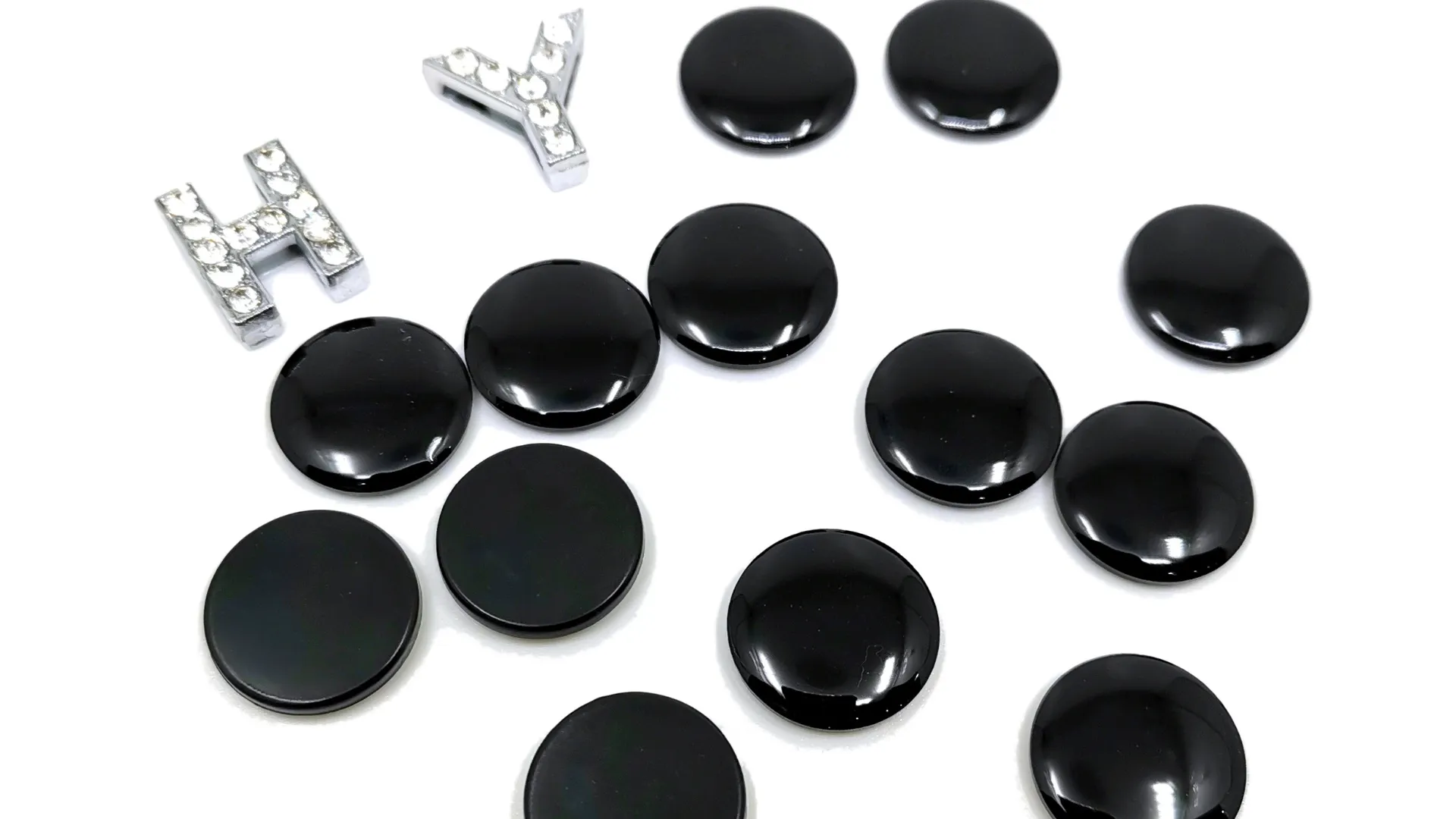

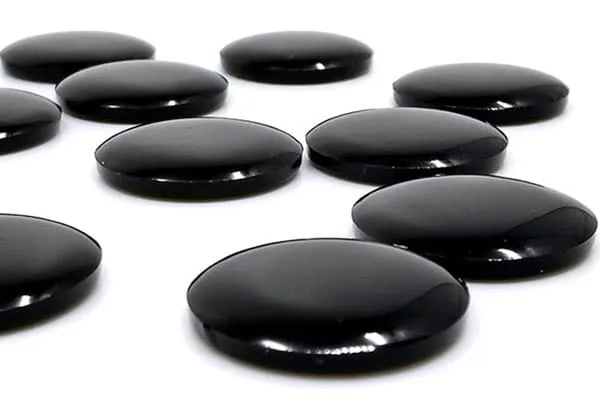

Our epoxy RFID mini tags look like a tiny button, the size of micro RFID tag is from 15mm to 18mm in diameter, the thickness can control to 2.8±0.2mm. Meanwhile, our tiny RFID button tag using an optimized coil, which maintains excellent reading performance. Moreover, surface printing is available based on client request. Using epoxy glue technology, the protection level can reach IP67, which is is appropriate for different industrial extreme strict environments.
Features of RFID NFC Mini Tag
- Robust waterproof, dustproof for industrial environment,
- Flexible RFID protocol, frequencies with adjustable performance
- Customized code printing and encoding
- Easily integrated for industrial identification applications
Specification of RFID Mini Tag
Item | Epoxy RFID NFC Mini Tag | |
Material | PPS Housing + Epoxy | |
Chip Available | HF: ICODE® SLIX, MIFARE Classic®,etc. | |
Size & Thickness | Dia:15mm/18mm or customized | |
Thickness: 2.8±0.2mm | ||
IP Class | IP67 | |
Read Range | 10~50mm | |
Protocol | ISO 14443A / 15693 / 18092 | |

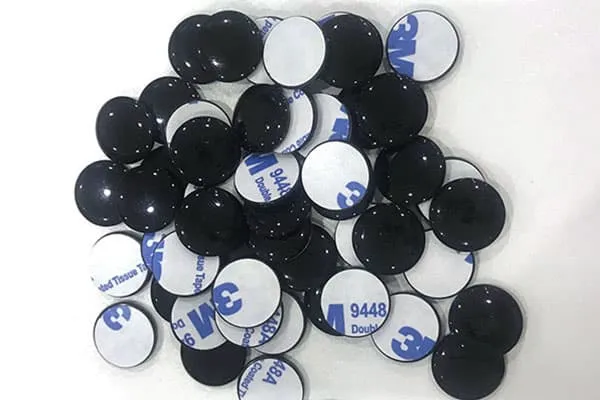

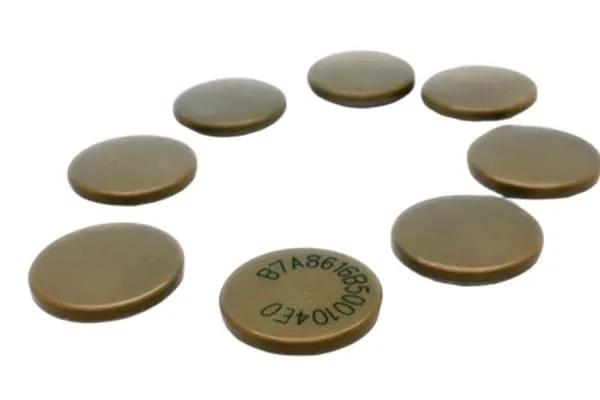

Additional Craft | Chip Encoding, Laser Engrave, Anti-metal, etc. |
Applications of Micro RFID Tags
Epoxy small RFID tag is an ideal solution for product authentication, equipment identification, tools / instruments locator and fixed asset management etc. At present, millions of our tiny RFID tags are used for tracking and identification in mining industry, which greatly improving the efficiency and accuracy. Some customers use this micro RFID tag to be embedded in the product as an NFC tag.
Get in touch
As a specialist of RFID and NFC R&D, HUAYUAN has been offering smart tag solutions serve variety of smart industries worldwide. For further information about Huayuan’s Epoxy RFID Mini Tag, Please contact our sales team.
