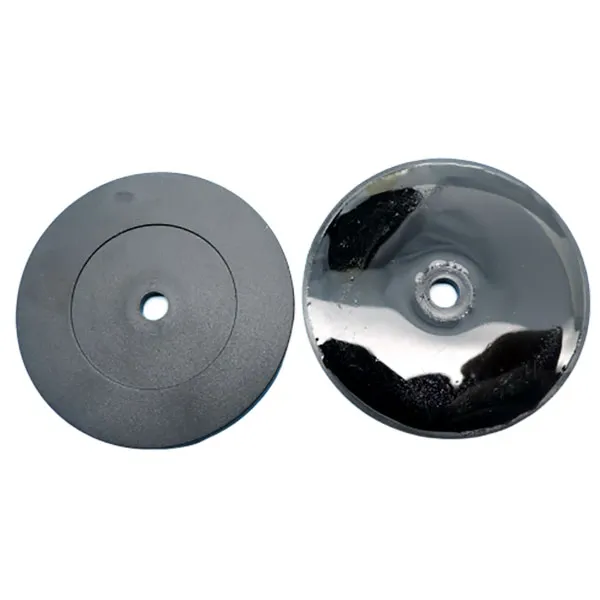

RFID Token consists out of a chip and an antenna from a durable material and can be shaped or customized with a central hole which enables to be screwed or nailed into a surface.

HUAYUAN Industrial RFID tag is available with a wide range of RFID technologies: from 125KHz low frequency to 13.56MHz high frequency as well as with ultra-high frequency. Thus providing an optimal solution for different RFID applications such as asset tracking, material identification etc. The RFID Tag is weather and waterproof as well as being nonmetal, therefore can be used outside as well as inside and on metallic surface.

RFID Token Features

  • Cost-effective
  • Strong ABS housing
  • Anti-collision and harsh resistant
  • Additional ABS/PC + epoxy for waterproof

Specification of RFID Token

  • Material: ABS/PC housing

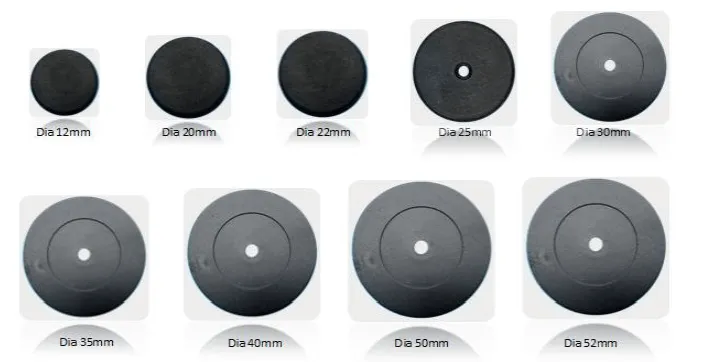

  • Diameter options:
    (LF) 12 / 25 / 29 / 30 / 35 / 40 / 50 / 52 mm
    (HF) 12 / 20 / 25 / 29 / 30 / 35 / 40 / 50 / 52 mm
    (UHF) 30 / 35 / 40 / 50 / 52 mm , or customized
  • Thickness Options: 2.3 / 3 / 4.8 / 7.8 mm for optional

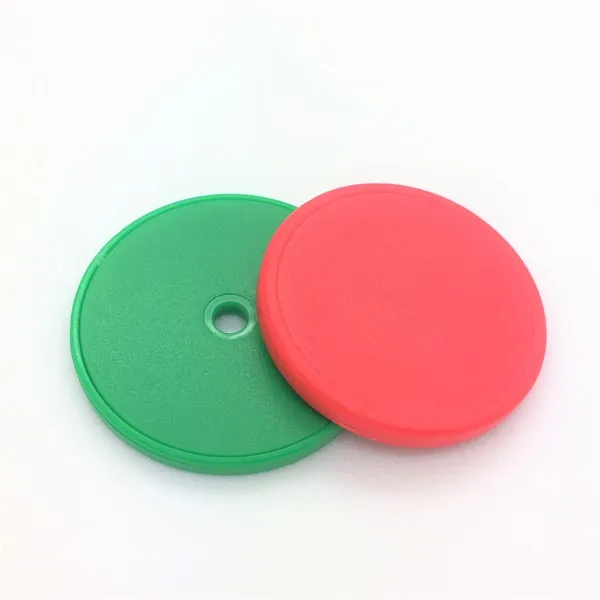

  • Color Options: Black, white, yellow, or customized
  • Operation Frequencies: 125kHz / 13.56Mhz / 860-960MHz
  • Resistance: Waterproof, harsh resistant
  • Operating Temperature: -40℃ ~ +70℃
  • Storage Temperature: -45℃ ~ 80 ℃

Craft Optional of RFID Token Tag

  • Encoding: Chip encoding
  • Custom Logo: Silkscreen printing, laser engrave
  • ID Number Printing: Laser engrave

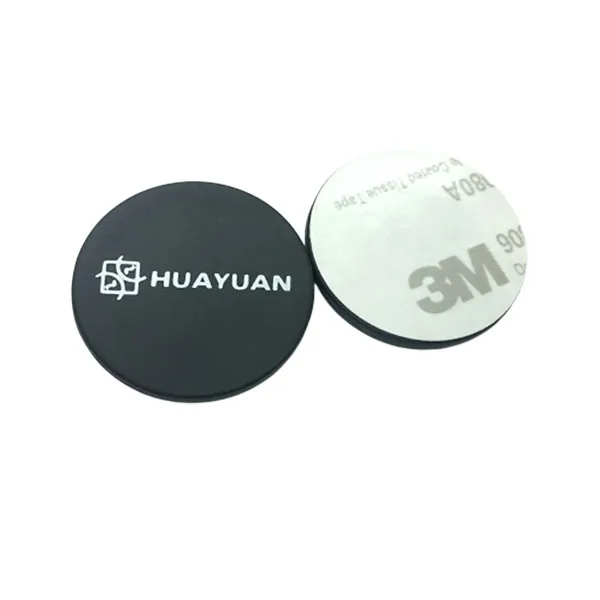

  • On Metal: Anti-metal ferrite layer optional
  • Adhesive: Ordinary adhesive sticker, 3M adhesive layer optional

Applications of RFID Coin Token

  • Security process control
  • Asset tracking
  • Device embedded
  • Identification
  • Inventory management
Get in touch

For further information about Huayuan’s RFID coin token tag, Please contact our sales team: contact@huayuansh.com
